Custom Magnetizing Fixtures
Magnetizing Fixtures customized to your Magnetizer
Engineered for Performance and Precision
Every magnetizing application is unique. Magnet Applications designs and manufactures fixtures in-house, ensuring exact compatibility with your magnet geometry, pole pattern, and field requirements. Our fixtures achieve full saturation, maximum stability, and repeatable results across millions of cycles.
Fixture Types & Capabilities
|
Fixture Type |
Field Pattern |
Typical Applications |
Advantages |
|

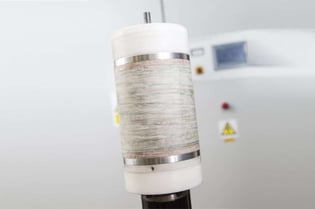

Single N/S through bore |
Ferrite, NdFeB, SmCo in any shape |
High field strengths >5T, flexible geometry |
|
|

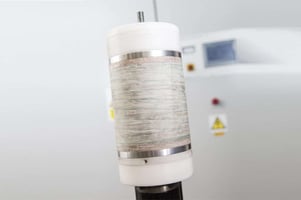

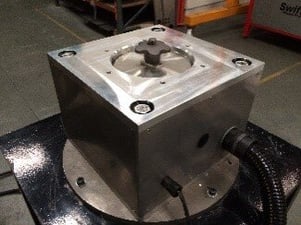

Poles on external ring diameter |
Rotors, sleeves |
Assemble unmagnetized, sharp pole transitions |
|
|
Poles on internal ring diameter |
Stators, flywheels |
Post-assembly magnetization, re-magnetization |
|
|
Multiple poles on one face |
Encoders, rotors |
High precision, double-sided options |
|
|
<3mm pitch |
Sensors, multi-track encoders |
CNC precision winding, sub-1mm possible |
|
|
Sinusoidal field, one-sided flux |
Motors, shielding applications |
Low cogging torque, reduced harmonics |
|
|
Match production design |
R&D, small runs |
Fast turnaround, low cost for trials |
Engineering Considerations
- Material Suitability – Isotropic magnets allow any direction of magnetization; anisotropic magnets must align with their preferred axis.
- Pole Pitch Accuracy – Down to sub-1mm for precision encoders and multi-track sensors.
- Cooling – Water or air cooling depending on duty cycle and energy level.
- Safety Interlocks – Prevent operation with incorrect settings, reducing the risk of under-magnetization.
- Integrated Testing – Search coils for real-time verification of field strength and pole accuracy.

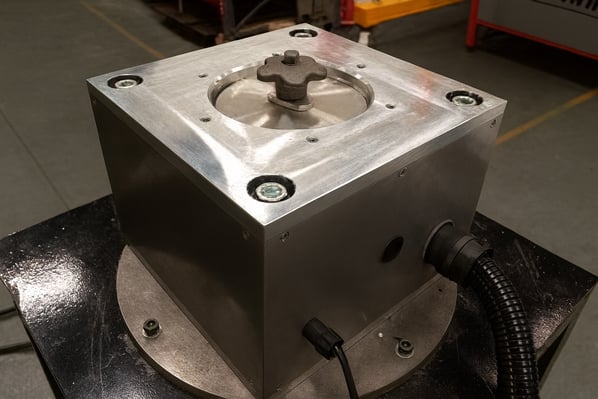

Post-Assembly Magnetization
By magnetizing after assembly, you avoid the hazards and complexity of handling high-energy magnets during production. This approach is ideal for:
- Rotor and stator assemblies in motors.
- Large, high-energy permanent magnet assemblies.
- Applications requiring skewed or complex pole arrangements.

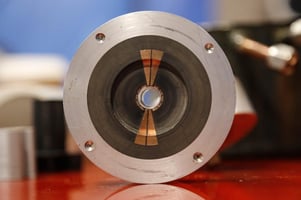

Halbach Specialization
Halbach fixtures produce a concentrated magnetic field on one side of the magnet while canceling the field on the opposite side. Benefits include:
- Reduced stray fields.
- Lower cogging torque in motors.
- Improved efficiency in applications sensitive to magnetic interference.

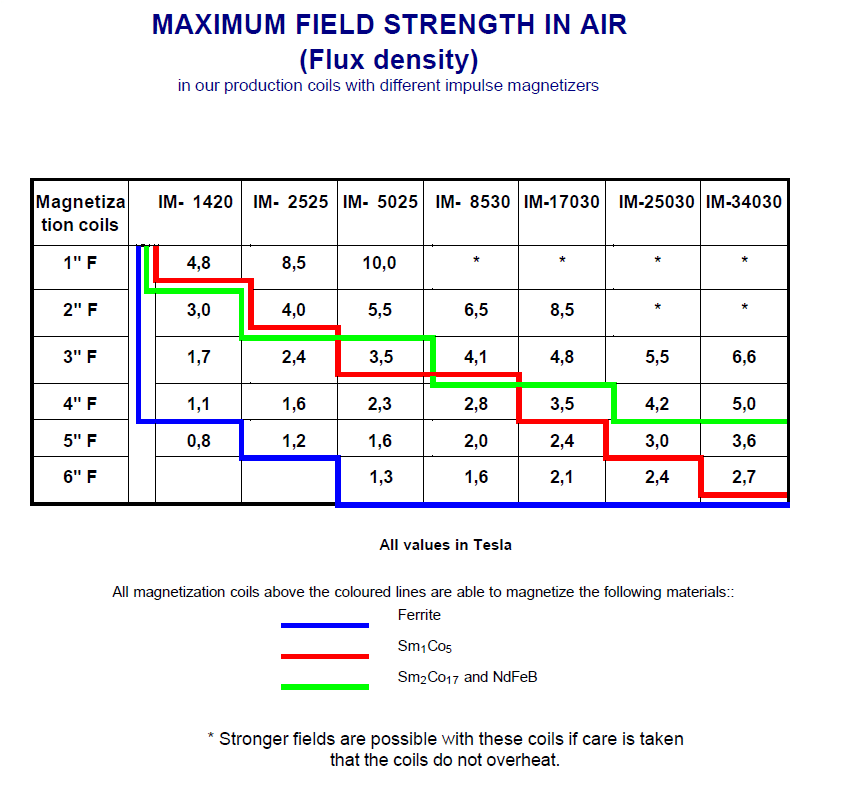

We can produce simple two-pole axial coils in varying sizes to best utilize the available energy of your magnetizer, depending on what material you are working with, or complex multipole / Halbach field distributions to create a specific magnet.
