Compression bonded magnets excel in high-volume manufacturing due to their excellent dimensional accuracy straight from the tool, which minimizes or eliminates secondary machining. This, combined with lower tooling costs and reliable mechanical strength, makes them ideal for scaling production efficiently and cost-effectively.
For engineering and purchasing leads tasked with scaling production, choosing the right magnetic material is a critical decision that impacts cost, speed, and final product quality. While sintered Neodymium magnets offer the highest magnetic strength, their brittle nature and high processing costs can create bottlenecks. This, coupled with the precarious nature of the supply chain for rare earth magnets out of China, makes Compression Bonded Magnets the preferred choice for a balanced and sustainable solution.
Frequently Asked Questions
What are compression bonded magnets?
Compression bonded magnets are a type of isotropic (meaning the magnet has no preferred orientation) permanent magnet made by pressing a mixture of magnetic powder (typically Neodymium-Iron-Boron) and a resin binder into a mold. The part is then cured in an oven to solidify it into its final, precise shape. Thus, eliminating the necessity for expensive tooling and the sintering process required in processing anisotropic (meaning the magnet is pressed with a preset direction of magnetic orientation) materials.
What is the primary advantage of compression bonded magnets in high-volume manufacturing?
Their primary advantage is superior dimensional accuracy straight from the tool. They are pressed to their final 'net shape,' which minimizes or eliminates the need for secondary machining. Additionally, as an isotropic material, once pressed, the magnets can be magnetized in any direction with equal strength and can even be magnetized with multiple or skewed poles. This reduces production steps, lowers costs, and shortens cycle times significantly at scale.
How do compression bonded magnets help reduce production costs?
Compression bonded magnets reduce costs in three key ways: by having significantly lower tooling costs compared to other processes, by eliminating expensive and time-consuming secondary machining steps, and by minimizing material waste since parts are pressed directly to their final shape.
Why is being 'isotropic' a key feature for compression bonded magnets?
Their isotropic nature means they have no preferred magnetic orientation when produced. This allows them to be magnetized in any direction or with complex multi-pole patterns after the part is formed. This versatility is crucial for applications like motors, sensors, and encoders that require specific magnetic fields.
First, What Are Compression Bonded Magnets?
Unlike sintered magnets, compression bonded magnets are formed to their final shape ("net shape") with high precision right out of the tool. This core characteristic is the source of their primary advantages in a high-volume manufacturing environment.
Key Advantages for High-Volume Manufacturing
The benefits of using Compression Bonded Magnets go beyond simple material choice; they directly address the most common challenges of manufacturing at scale: cost control, production speed, and design precision.
1. Superior Dimensional Accuracy (“Off-Tool”)
The single most significant advantage is that compression bonded magnets are pressed to their net shape. This means they require little to no secondary machining or grinding after being formed.
- Impact on Manufacturing: This eliminates entire steps from the production line, drastically reducing labor costs, cycle times, and the potential for defects introduced during post-processing. For high-volume runs, the time and cost savings are substantial.
2. Lower Tooling Costs and Faster Ramp-Up
Tooling for compression bonding is significantly less expensive and faster to produce than for other processes like injection molding or the dies required for sintered rare earth magnets.
- Impact on Manufacturing: With tooling costs starting as low as $4,000 and lead times for new tooling around 10-12 weeks, companies can bring new products to market faster and with a lower initial investment. Typically, compression bonded tooling lasts 3 or 4 times longer than other forms of magnet manufacturing. This also makes high-mix, lower-volume production runs more economically viable.
3. Excellent Design Flexibility for Complex Shapes

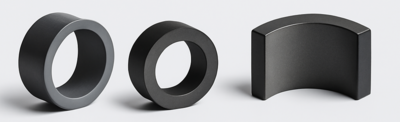

The compression bonding process allows for the creation of complex and intricate shapes that are difficult or impossible to achieve with brittle sintered magnets. This includes thin-walled rings, arc segments, and parts with unique geometries.
- Impact on Manufacturing: Engineers can design more compact, efficient, and integrated components without being limited by the manufacturing constraints of the magnetic material. Compression Bonded Magnets enable innovation at the component level.
4. Isotropic Nature for Versatile Magnetization
Compression Bonded Magnets are isotropic, meaning they do not have a preferred magnetic orientation when produced. They can be magnetized in any direction or pattern after the part has been formed.
- Impact on Manufacturing: This allows for complex multi-pole magnetization patterns (e.g., multiple north and south poles on a single magnet face, or skewed magnetization) which are essential for optimum performance in motors, sensors, and encoders. The magnetization step can be integrated into the assembly line, simplifying logistics. Another significant advantage and exclusive to Magnet Applications is the ability to also supply the magnetizing equipment necessary to achieve optimum performance of the compression bonded magnet.
5. High Material Efficiency and Minimal Waste
Because the magnets are pressed to their final shape, there is very little material waste compared to processes that start with a large block and machine it down to size.
- Impact on Manufacturing: At scale, reducing material waste translates directly to lower per-unit costs and a more sustainable production process.
Common Applications Where These Advantages Shine
The unique combination of precision, cost-effectiveness, and design freedom makes Compression Bonded Magnets the ideal choice for numerous high-volume applications:
- Brushless DC Motor (BLDC) also known as electronically commutated motor / Fractional Horsepower Motors: Used in fans, pumps, and appliances where consistent performance and low production cost are paramount. Mostly used in high-efficiency applications.
- Rotary Encoders and Motion Sensors: Their dimensional stability and ability to hold complex magnetization patterns are critical for accurate position sensing.
- Automotive Assemblies: Perfect for seat motors, steering wheel applications, sunroof controls, and window actuators where tight tolerances, complex shapes, and cost-effective production are non-negotiable.
- Industrial Automation: Used in various motors and sensors where reliability and manufacturability at scale are key.
A Critical Advantage: A Resilient Domestic Supply Chain
For high-volume manufacturing, supply chain stability and sustainabiliy is non-negotiable. Recent global events have highlighted the risks of relying on a single foreign source for critical components like magnets. Magnet Applications has been supplying magnets for over 60 years and has produced many millions of parts to satisfied customers around the world and welcomes the chance to join your team.
For manufacturers prioritizing resilience, a domestic partner like Magnet Applications offers a crucial advantage. As the only U.S.-based, zero-China supplier of Compression Bonded Magnets, they provide an end-to-end domestic solution, from powder sourcing to final magnetization. This ensures:
- Supply Chain Security: Independence from foreign export restrictions and shipping delays.
- Compliance and Quality: In-house control over the entire process, with full compliance for ITAR, DFARS, and ISO 9001:2015 standards.
- Just-in-Time Delivery: Programs like MagVault™ inventory management support lean manufacturing principles essential for high-volume operations.
The Bottom Line: Efficiency and Reliability at Scale
For any organization looking to scale production without compromising on precision, cost, or supply chain reliability, Compression Bonded Magnets present a clear and compelling solution. They offer a powerful combination of manufacturability, design freedom, and economic efficiency that is perfectly suited for the demands of modern, high-volume manufacturing.
