To fully magnetize high-strength rare earth magnets, the primary tool required is a capacitive discharge magnetizer. This equipment delivers a short, high-energy pulse needed to saturate materials like Neodymium and Samarium Cobalt. Other methods, while available, are generally insufficient for these powerful magnets.
Why Rare Earth Magnets Require Specialized Equipment
Before diving into the equipment types, it's crucial to understand why rare earth magnets (like Neodymium Iron Boron and Samarium Cobalt) are different. These materials possess exceptionally high "coercivity," a property that measures their resistance to demagnetization.
To overcome this resistance and magnetize them to saturation—the point where they achieve their full magnetic potential—an immense magnetic field is required, typically in the range of 3 to 5 Tesla (30 to 50 kOe). Generating such a powerful field efficiently and safely is the primary challenge.
Frequently Asked Questions
What is the primary equipment used to magnetize rare earth magnets like Neodymium?
The industry standard is a Capacitive Discharge Magnetizer. This equipment is essential because it can deliver the high-energy magnetic pulse, typically between 3 to 5 Tesla, required to fully saturate high-coercivity rare earth materials like Neodymium (NdFeB) or Samarium Cobalt (SmCo).
What are the two main components of a magnetizing system for rare earth magnets?
A complete magnetizing system consists of two critical components: the magnetizer (the power supply unit) and the magnetizing fixture (the custom-designed coil assembly). The magnetizer stores and releases a high-current energy pulse, while the fixture is the tool that shapes the resulting magnetic field to match the specific application.
What is post-assembly magnetization and what are its benefits?
Post-assembly magnetization is the process of magnetizing the material after it has been fully assembled into a larger component, like a motor rotor. Its primary benefits include improved safety by eliminating the need to handle powerfully charged magnets, increased assembly efficiency, and the ability to achieve tighter manufacturing tolerances without magnetic interference.
Why aren't DC electromagnets suitable for magnetizing rare earth materials?
DC electromagnets create a constant magnetic field but are generally insufficient for fully magnetizing rare earth magnets. While effective for low-coercivity materials, generating the 3-5 Tesla field strength required for rare earths would necessitate a massive, impractical, and costly superconducting magnet, making them not a viable solution.
The Main Types of Magnetizing Equipment
While several technologies exist, they are not all suitable for the demands of rare earth materials. Here’s a breakdown of the primary types of magnetizing equipment.
1. Capacitive Discharge Magnetizers
This is the gold standard for magnetizing rare earth materials. A capacitive discharge magnetizer works by storing a large amount of electrical energy in a bank of capacitors and then releasing it in a single, massive, and extremely fast pulse through a magnetizing fixture (coil).
This high-current pulse generates the intense magnetic field required to saturate rare earth magnets. The short duration of the pulse (milliseconds) is critical, as it prevents the magnetizing coils from overheating and destroying themselves under such extreme energy loads.
Industrial systems like the BMC Series are specifically engineered for this task and designed with modular construction, allowing them to be configured with the precise voltage and capacitance needed for complex applications, from permanent magnet rotors to large magnetic assemblies.
- Key Benefit: Delivers the high-intensity field (3-5+ Tesla) needed for rare earth magnets.
- Efficiency: The short pulse duration prevents overheating and limits eddy currents in surrounding metal components.
- Versatility: Can power a wide range of custom magnetizing fixtures for different magnet shapes and pole patterns.
2. DC Electromagnets
A DC electromagnet uses a continuous direct current flowing through a coil to generate a steady magnetic field. While effective for older magnetic materials with lower coercivity, such as Alnico and Ferrites (which require fields around 3 kOe and 10 kOe, respectively), they are impractical for rare earth magnets.
Generating a continuous DC field of 30-50 kOe would require a massive, cost-prohibitive power supply and a complex cooling system, likely involving superconducting magnets, making it unsuitable for most industrial or lab settings.
3. Permanent Magnet Magnetizers
In some cases, a powerful permanent magnet assembly can be used to magnetize weaker magnetic materials. However, this method is only practical for materials with very low coercivity. It presents two major problems for industrial use:
- The magnetic field cannot be turned off, making it difficult and potentially unsafe to insert and remove parts.
- The strong "fringing fields" can adversely affect the magnetization of the part as it is being removed.
Beyond the Magnetizer: The Critical Role of Fixtures

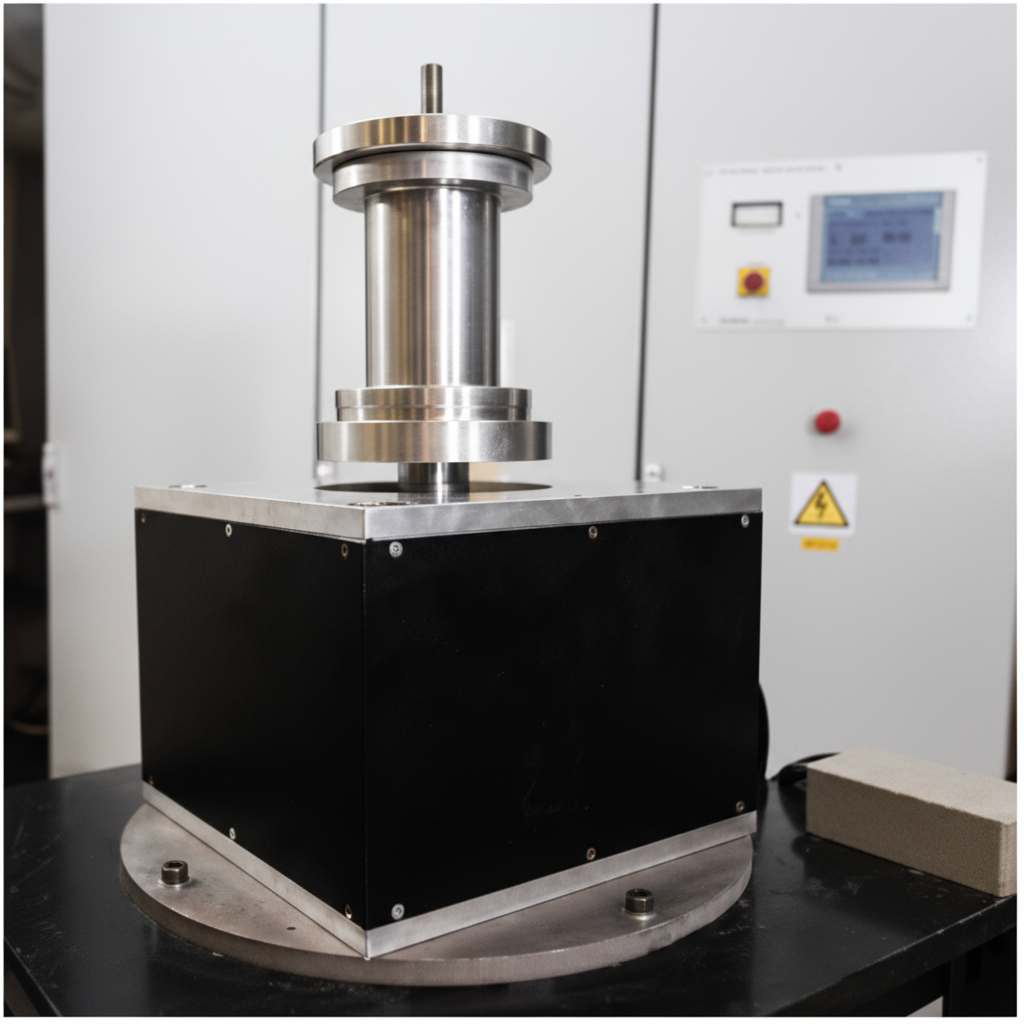

A magnetizing system is incomplete without a magnetizing fixture. This is the custom-designed tooling—often a specialized coil—that holds the magnet and shapes the magnetic field to create the desired pole pattern. The fixture is arguably as important as the magnetizer itself.
Because magnetization is often the final step in manufacturing, precision is key. Deep expertise in this area is required to offer custom-designed fixtures for a vast range of applications.
Common types of fixtures used with capacitive discharge magnetizers include:
- Axial Field Solenoids: The most common type, used to create a simple two-pole magnet (North on one face, South on the other).
- Radial Multipole Fixtures: Used to create multiple poles on the interior or exterior diameter of a ring magnet, essential for permanent magnet rotors and motors.
- Axial Field Multipole Fixtures: Creates multiple poles across the flat face of a disc or ring magnet, commonly used for sensors and encoders.
- Halbach Magnetizing Fixtures: Creates a specialized array that concentrates the magnetic field on one side while canceling it on the other, perfect for high-efficiency motors and self-shielding assemblies.
Choosing the Right System: Key Considerations
Selecting the right magnetizing equipment depends on the application's scale and complexity.
Laboratory vs. Industrial Production
For research, development, and small-batch production, a smaller, more versatile system is ideal. For these scenarios, systems like the BMCL Series provide a workbench-style solution perfect for laboratory use where multiple different fixtures may be used.
For large-scale industrial applications, a robust, PLC-controlled system like the BMC Series is necessary. These units can be integrated directly into automated production lines and are built to handle the high energy demands of magnetizing large components like traction motors.
The Advantage of Post-Assembly Magnetization
One of the greatest benefits of using a high-quality magnetizing system is the ability to perform post-assembly magnetization. This process involves building a device (like a motor rotor) with un-magnetized magnets and then magnetizing the entire assembly in one final step.
This approach dramatically improves production efficiency and safety by eliminating the challenges of handling and assembling powerful, active rare earth magnets. Achieving this requires precisely engineered magnetizers and fixtures capable of penetrating the assembly to fully saturate the magnets within it.
Conclusion: A Unified Solution is Key
For rare earth magnets, the choice is clear: a capacitive discharge magnetizer is the essential tool. However, the magnetizer is only one part of the equation. A successful and repeatable magnetization process depends on a fully integrated system where the power supply, control system, and custom fixture work in perfect harmony.
By partnering with a provider that manufactures both magnets and magnetizing equipment, you gain access to a holistic understanding of the entire process, ensuring your components achieve their maximum magnetic potential every time.
